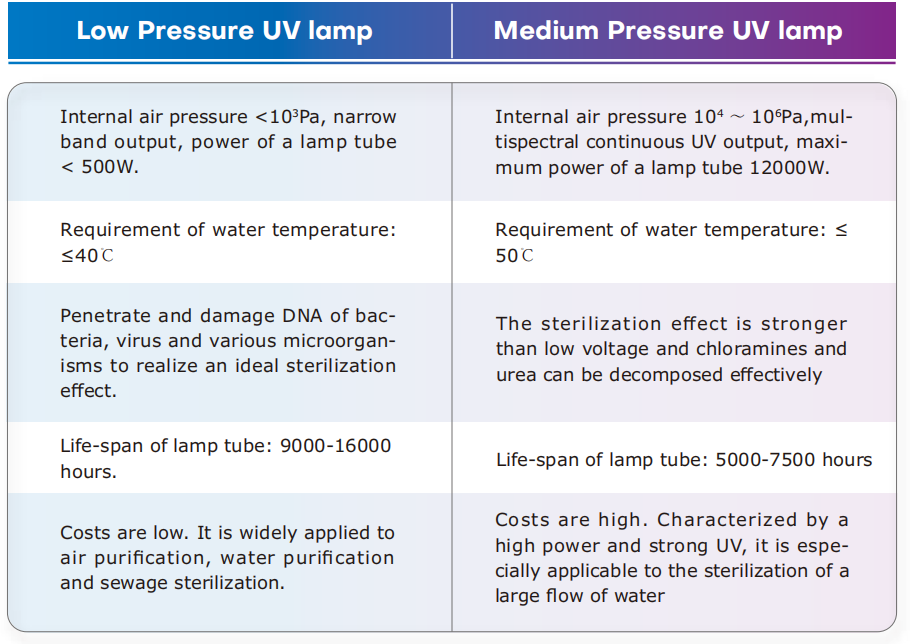

Comparison Between Low Pressure UV Lamp and Medium Pressure UV Lamp
Product Features
-
Lamp life: 5000–7500 hours
-
UV intensity is 20–200 times higher compared to traditional low pressure high intensity lamps
-
Lamp output power can be adjusted manually from 50–100% (except MPUV-0.5KW-1)
-
Air-cooled, heat-dissipating electronic ballasts
-
Automatic quartz tube cleaning system
-
Touch HMI
-
Perfect online monitoring and protection features
CONTROL SYSTEM
Standard Functions
-
PLC controller + touch screen
-
HMI displays the operating parameters of each lamp (including operating status, current, power, current and cumulative operating hours)
-
Manual/automatic mode (remote start-up and shutdown of lamps in automatic mode)
-
Fault alarm passive signal output
-
Set lamp output power manually or remotely
-
Manual calibration of the UV intensity value is required when replacing the lamp with a new one
Optional Function
-
Modbus remote communication
Case Material
-
Painted carbon steel (Option: SS304 / SS316L)
Mounting Method
-
Wall-mounted, floor standing
Cooling Method
-
Cooling Method
ONLINE MONITORING
-
UV Intensity Monitoring: On-line monitoring of UV intensity
-
Water Temperature Monitoring: Online monitoring of water temperature in the reactor
UV REACTOR
-
Material: SS316L (Option: SS304)
OPERATING ENVIRONMENT
| Parameter | Specification |
|---|---|
| Ambient Temperature / Humidity | Indoor use; Temperature 5℃–40℃, Humidity < 80% |
| Water Temperature | Recommended 5℃–50℃ |
| Working Pressure | 0.7 MPa |

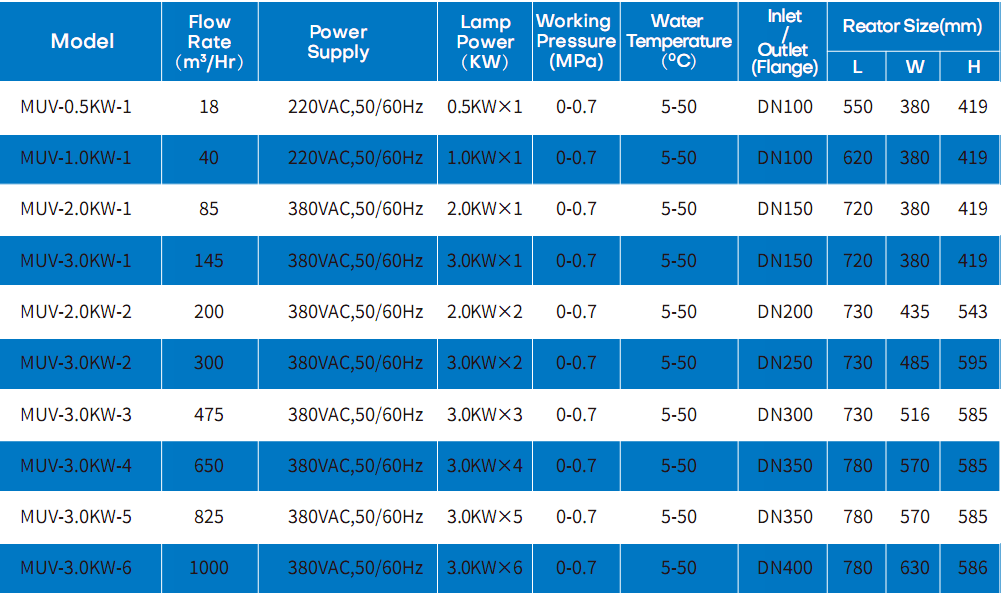

Different Models
